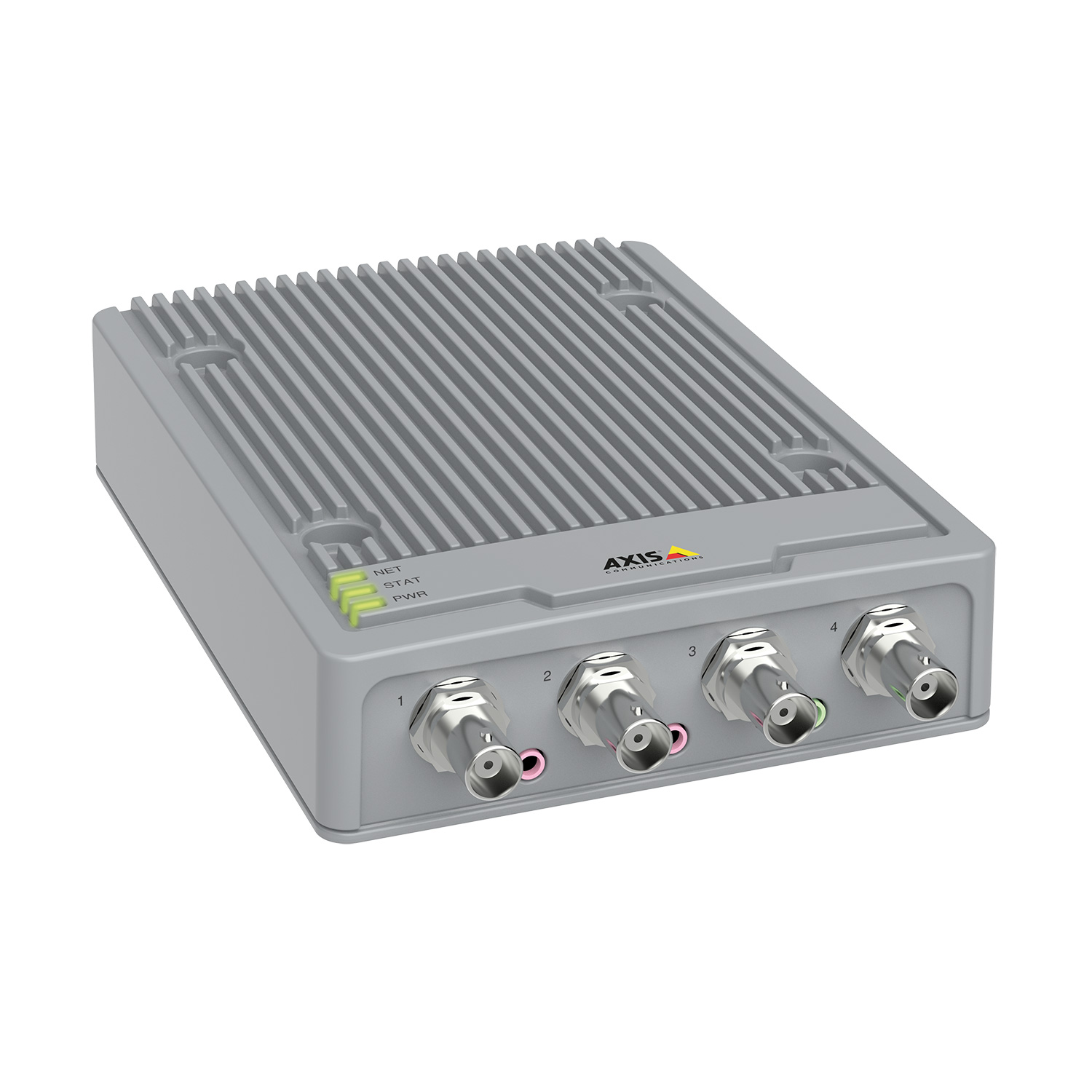

AXIS P7304 Video Encoder

This robust 4 channel video encoder is designed to seamlessly integrate analog surveillance systems into modern IP-based networks. It supports both standard-definition PAL/NTSC cameras and high-definition analog formats, offering exceptional flexibility for hybrid installations. Ideal for organizations looking to preserve existing analog infrastructure while upgrading to network capabilities, this encoder provides a reliable and scalable solution.

Each video channel supports multiple, individually configurable streams in H.264, H.265, and Motion JPEG formats, enabling efficient video management tailored to specific network or storage requirements. With full frame rate support of 25/30 fps at resolutions up to 1080p, it delivers smooth, high-quality video across all connected channels. Axis Zipstream technology optimizes video streams to reduce bandwidth and storage usage significantly, without sacrificing important forensic detail. Advanced video analytics features such as video motion detection, active tampering alarms, and audio detection enhance situational awareness and proactive response.

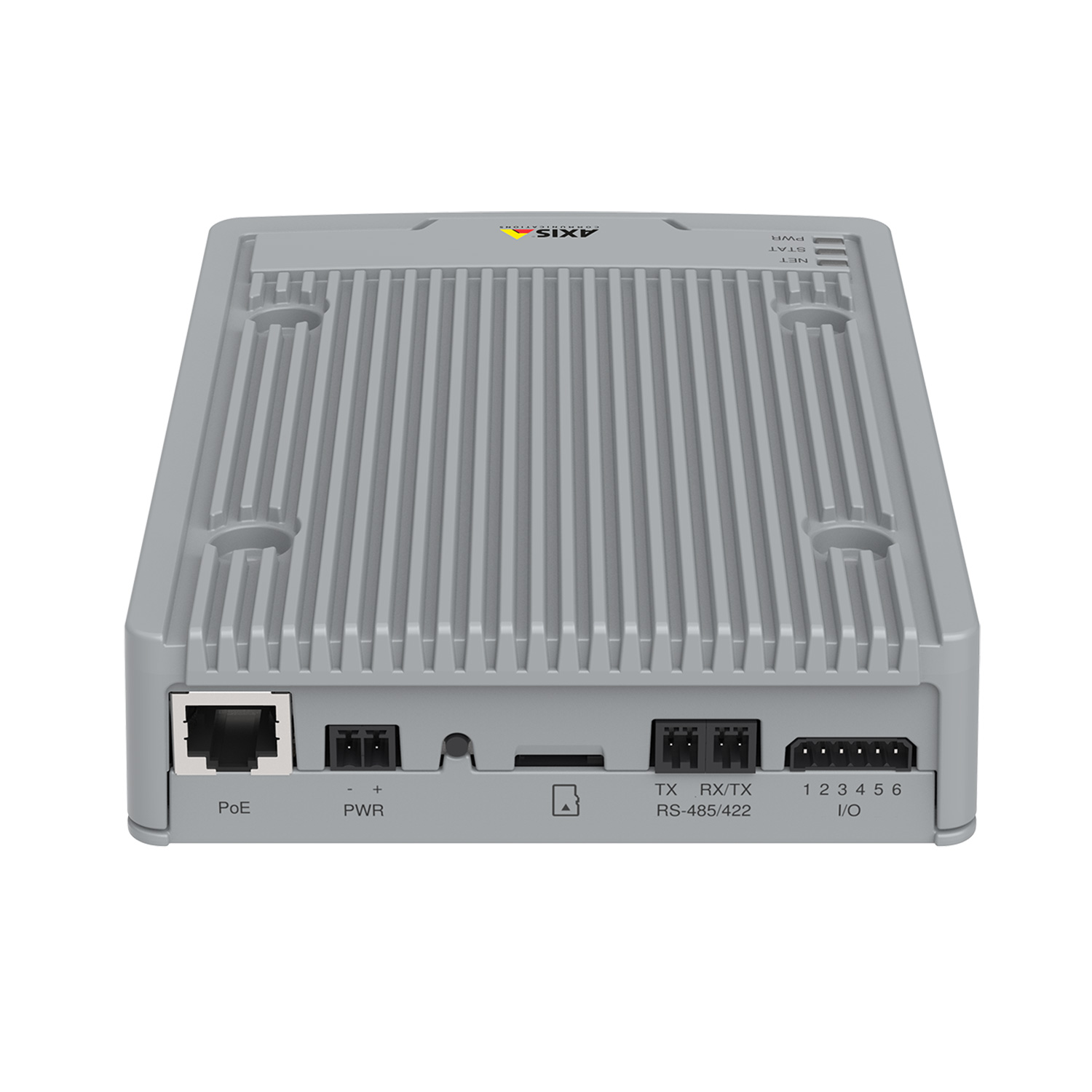

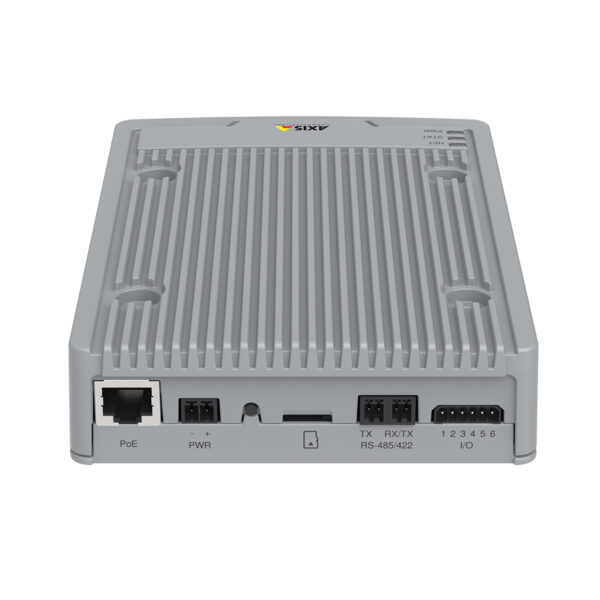

The unit includes I/O ports for event-driven alarm handling and a serial port supporting RS422/RS485 communication protocols, enabling integration with PTZ cameras and other control devices. It can be powered via Power over Ethernet (PoE) for simplified installation or through a 12–20V DC input for flexible deployment scenarios. A built-in MicroSD/MicroSDHC slot allows for optional local video storage, ensuring continuous recording even if network connectivity is interrupted. Two-way audio capability supports both analog and digital microphones, enabling audio surveillance and communication in monitored areas. This encoder is a comprehensive solution for bringing analog systems into the network age with advanced features, strong performance, and reliable security.

Product Number: 01680-001
SKU: 7331021066403
